Axial Fan

  • Axial Fan

Axial Fan

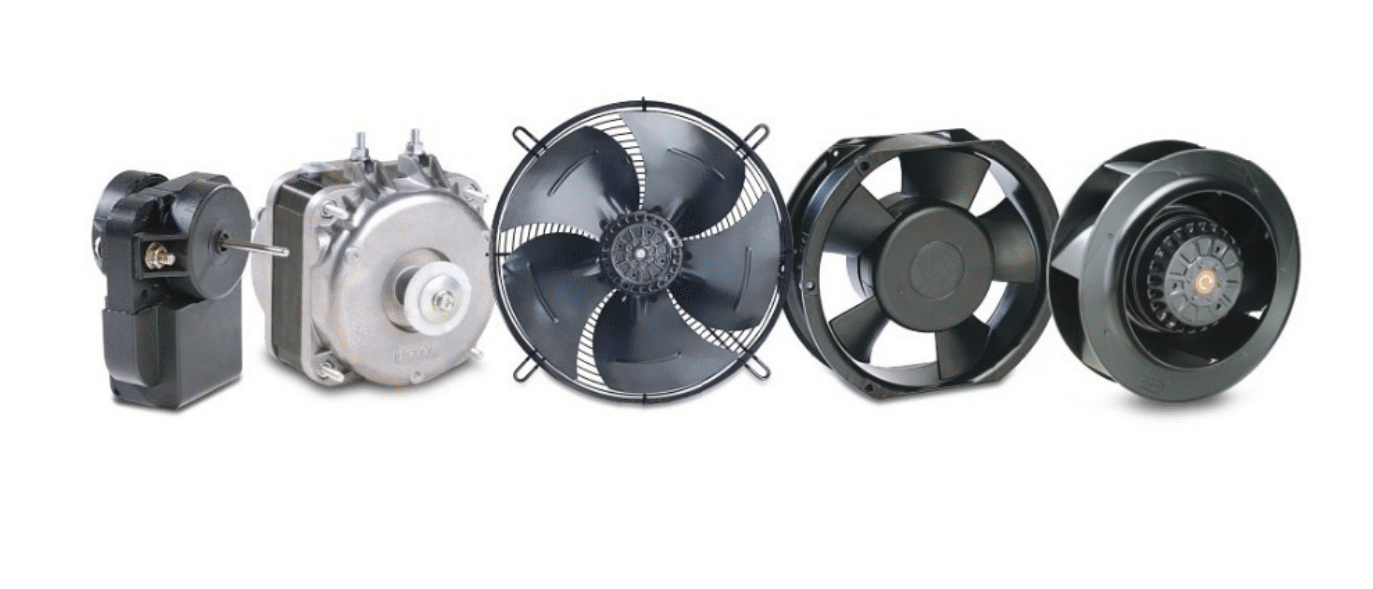

Fans for climate control in HVAC & R System

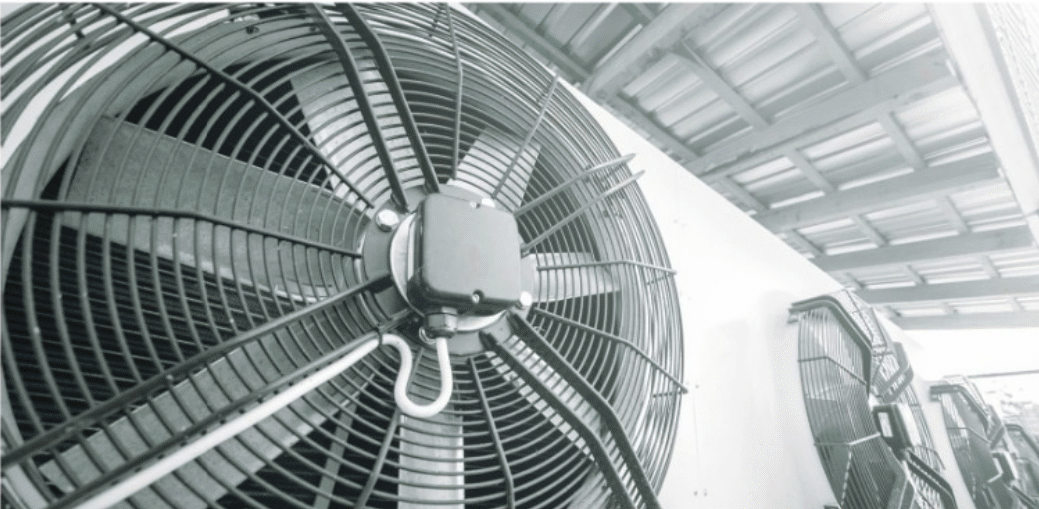

Large Axial Fans

Shaded Pole Motors (Bush Type)

S. No. Item Item Code Type Phase RPM
1 Axial Fan 12" 4E-300/4D-300(S/B) S/B 1Ph/3Ph 1380
2 Axial Fan 12" 2E-300/2D-300(S/B) S/B 1Ph/3Ph 2400
3 Axial Fan 14" 4E-300/4D-300(S/B) S/B 1Ph/3Ph 1380
4 Axial Fan 16" 4E-300/4D-400(S/B) S/B 1Ph/3Ph 1380
5 Axial Fan 18" 4E-450/4D-450(S/B) S/B 1Ph/3Ph 1380
6 Axial Fan 20" 4E-500/4D-500(S/B) S/B 1Ph/3Ph 1320
7 Axial Fan 22" 4E-550/4D-550(S/B) S/B 1Ph/3Ph 1300
8 Axial Fan 24" 4E-600/4D-600(S/B) S/B 1Ph/3Ph 1370
9 Axial Fan 24" 6D-600 (6 Pole - S) S 3Ph 950
10 Axial Fan 25" 4E-630/4D-630(S/B) S/B 1Ph/3Ph 1320
11 Axial Fan 25" 6E/6D-630(6 Pole -S) S 3Ph 900
12 Axial Fan 28" 6D-710(S) S 3Ph 900
13 Axial Fan 32" 6D-800(S) S 3Ph 930

KEY :- E-Single Phase (220V), D-Three Phase (415V), S- Suction, B-Blowing / Throw Frequency - 50 Hz, Warranty - 1 Year from date of manufacturing

SHADED POLE MOTORS (BUSH TYPE) (ONLY MOTOR)

S. No. Output Watt Description Guided Fan Size (mm) Input Watt Type
1 5 83A230SAC-5W Q Type
Motor Bracket - 72mm
AL Impeller - 200mm (S/B) 		200 30 BUSH TYPE
2 10 83A230SAC-10W Q TYPE
Motor Bracket - 72 mm
AL Impeller - 230 (S/B) 		230 45 BUSH TYPE
3 16 83A230SAC-16W Q TYPE
Motor Bracket - 84 mm
Impeller - 254 (S/B)		 254 50 BUSH TYPE
4 25 83A230SAC-25W Q TYPE
Motor Bracket - 109 mm
AL Impeller - 300 (S)		 300 90 BUSH TYPE
5 34 83A230SAC-34W Q TYPE
Motor Bracket - 109 mm
AL Impeller - 300 (S)		 300 110 BUSH TYPE
