FAN HOUSING HEATING ELEMENT FOR COLD ROOM lNDOOR UNIT
FAN HOUSING HEATING ELEMENT FOR COLD ROOM lNDOOR UNIT

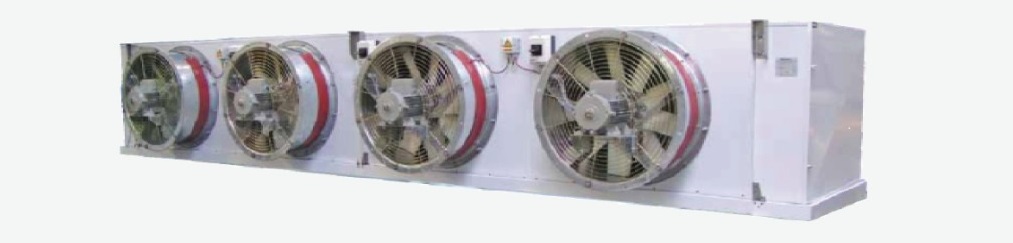

Application:Fan Housing heaters are used inside cold rooms on cooling coils units for removing Ice from fan blade cowling, Rim and collars. These heaters provide proper heat dissipation and maximum surface coverage. These heaters are moisture and water resistant.

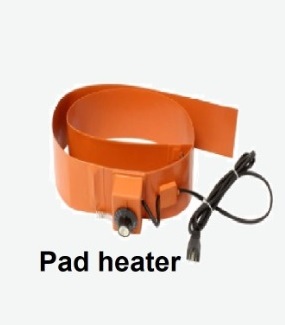

| Fan Housing Heaters Flexible Belt Type | |||||
|---|---|---|---|---|---|
| Cat no. | Fan Housing Diameter | Heater length | Heater width | Voltage | Power |
| FHHB630 | 630mm | 1994mm | 50mm | 230v | 325watts |
| FHHB710 | 710mm | 2245mm | 80mm | 230v | 325watts |
| FHHB800 | 800mm | 2528mm | 80mm | 230v | 400watts |
| FHHB900 | 900mm | 2528mm | 80mm | 230v | 450watt |

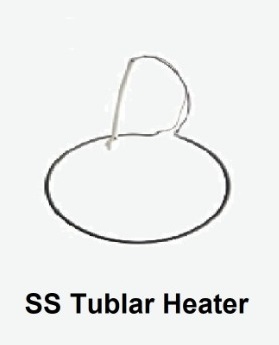

| Fan Housing Heater Tubular Type | |||||||
|---|---|---|---|---|---|---|---|
| Cat no. | Fan Housing Diameter | Heater Ring Dia | Heater Dia | Voltage | Power | ||
| FHHT630 | 630mm | 600mm | 8mm | 230v | 1000watts | ||
| FHHT710 | 710mm | 680mm | 8mm | 230v | 1000watts | ||
| FHHT800 | 800mm | 770mm | 8mm | 230v | 1500watts | ||
| FHHT900 | 900mm | 870mm | 8mm | 230v | 1500watt | ||
