Industrial Heater

  • Industrial Heater

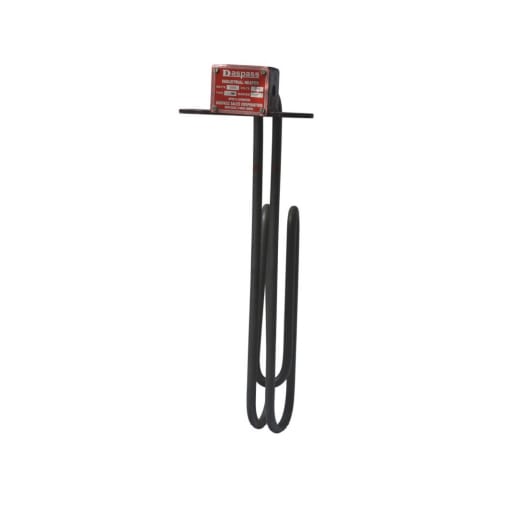

Immersion & Chemical Heaters

Alkaline Heater

Daspass over the Side Alkaline / Lead Covered Chemical Immersion Heaters

  • ALI:- These alkaline heaters are used for alkaline cleaning solution , cirtrus juices and very mild acid bath not corrosive to stainless steel sheet
  • LCI:- These lead covered heaters are recommended for nickle, copper or chrome, plating baths and sulphuric acid solution having not more then 10% concentration. Caution. These heaters are not recommended for any other acid.
  • CIT:- These titanium sheathed heaters are recommended for plating baths such nickels, chorme, gold, silver including ferric and iron chloride solution bright dips and nickels containing, nitric, Phospharic and chromic acids, permagenates, persulphats. Supply voltage 230v/1Ph. /AC/50Hz
    • Sr. No. Cat. No. Watts Total Length Effective Length Cold Length
    345 ALI 20 (2000) 525 335 200
    346 ALI 30 (3000) 685 385 300
    347 LCI 20 (2000) 625 335 200
    348 LCI 30 (3000) 685 385 300
    349 CIT 20 (2000) 525 335 200
    350 CIT 30 (3000) 685 385 300

    OLI

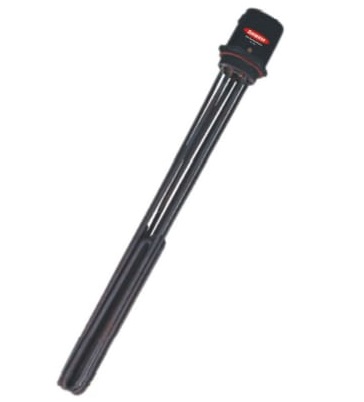

    Industrial Oil Immersion Heaters

    Manufacturer out of special street tube with auto black coating brazed to M.S Flange provided with thermoplast pocket. Used for fuel oil heating , oil irculating, oil jacketing etc.

    Caution To be fully immersed in oil before putting in opertaion

    Cat. No. Watts Volts M.S Flange BSPP Dept. Of Immersion (mm)
    OLI-20 2000 230 2 1/2" 440
    OLI-30 3000 230/415 2 1/2" 440
    OLI-40 4000 230/415 2 1/2" 580
    OLI-50 5000 230/415 2 1/2" 600
    OLI-60 6000 230/415 2 1/2" 650
    OLI-90 9000 230/415 2 1/2" 650
    OLI-120 12000 230/415 2 1/2" 760

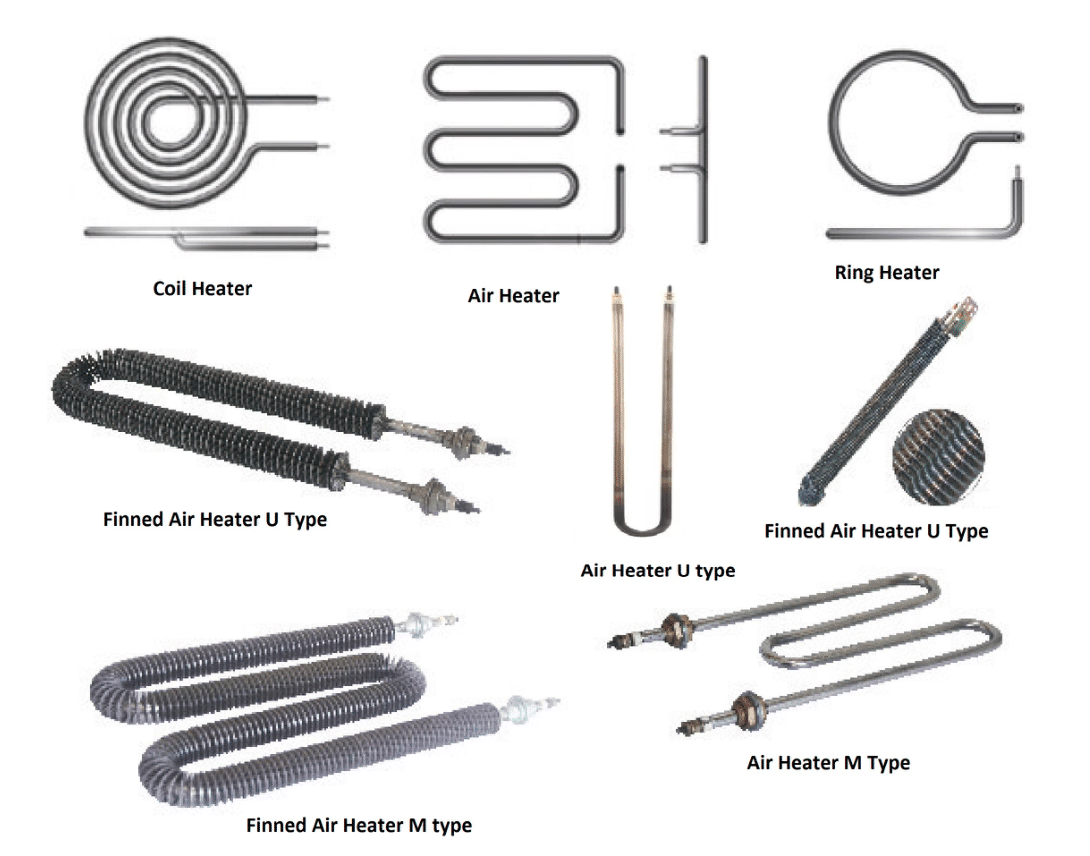

    Tubular Heating Elements (Air)

    Air heater are manufactured out of S.S. 304/316L/INC sheathed tube for higher temperature upto 600 C. Each heating elements is made of NiCr 80/20 resistance wires. Each element is provided with two adjustable fixing arrangements. Tube diameter varies from 8.0mm to 15mm

    Fins of S.S/G.I. are provided to enlarge the heat surface.

    Supply Voltage varies from 74V to 240V/AC/1PH/50-60Hz

    Cat. No. Watts Length (mm) Width (mm) Height (mm)
    FAU / AHU-05 500 254 55 40
    FAH / AHU-07 750 450 55 40
    FAH / AHU-10 1000 610 55 40
    FAH / AHU-10+ 1000 762 55 40
    FAH / AHU-15 1500 762 55 40
    FAH / AHU-15+ 1500 990 55 40
    FAH / AHU-20 2000 990 55 40

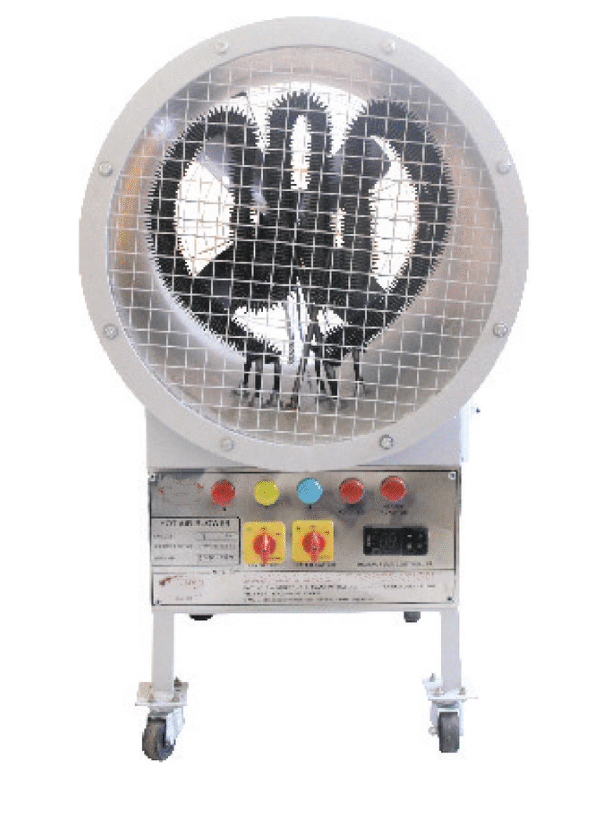

    Hot Air Blowers

    Application

  • Incubation rooms
  • Poultry Farms
  • Drying of engine components after washing
  • Drying of match sticks
  • Curd from milk
  • Canteens
  • Drying papers after printing
  • Drying Paint of motor Vehicles
  • Drying of Corrugation Paper after paste
  • Ware House etc.

    • Standard Control Panel

  • Main Contractor L & T or Equivlent
  • Disconnect Switch
  • Indicator
  • Primary Thermoplast
  • Secondary Thermal Cut-out
  • 4 Legs with Moving Wheels
  • Factory Internal Wiring with best quality cooper conductor, fiber wire, lugs etc.
  • Glanding / Earthing Etc.
  • Supply 415V/ 3PH/ AC/50Hz

    • Test

  • Visual
  • Input
  • High Voltage
  • Insulation Resistance as per IS 302

    • Available Models

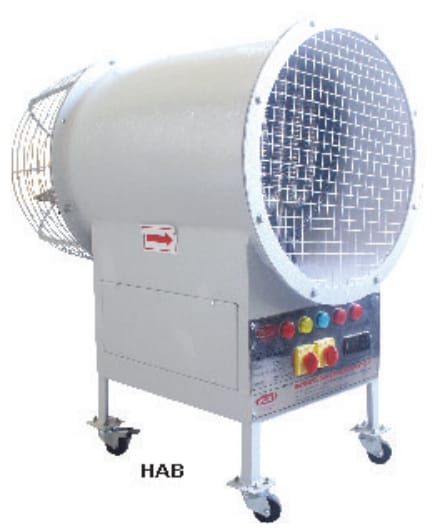

  • Type HAB (Daspass Air Blower Heater)

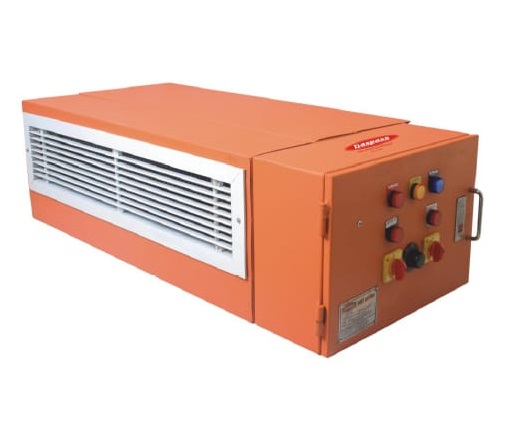

  • Type HAU (Daspass Air Blower Heaters)

    • Technical Specifications

  • The Electric Finned air Elements, Blower, Electric motor
  • All equipments are totally installed in box type unit
  • The units are moving grill on front side
  • The units are wire gurads on rear side
    • Cat. No. Specification CMH RPM Approx. Temp. Rise
    HAB06 6.0Kw / 415V-3PH-AC-50-Hz 2450 900 060
    HAB09 9.0Kw / 415V-3PH-AC-50-Hz 2450 900 130
    HAB12 12.0Kw / 415V-3PH-AC-50-Hz 2450 900 150
    HAB18 18.0Kw / 415V-3PH-AC-50-Hz 2450 900 200
    HAB24 24.0Kw / 415V-3PH-AC-50-Hz 2450 900 300
    HAB30 30.0Kw / 415V-3PH-AC-50-Hz 2450 900 400

    Note: Custom-Built Heaters Upto 6000C undertaking
