Drain Heater

Application : Drain or Heat tracers are used on tanks & drain pipelines, having one end connection or terminals to be used for defrosting in cold rooms on drain pipes and cooling water dispenser trays .

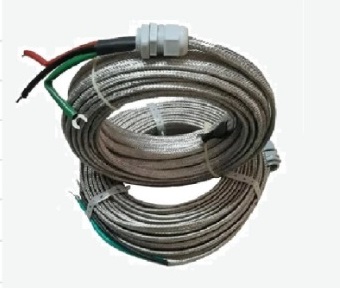

SS Drain Heater

Standard Watts 45 per meter / Volts 230 / Width 6 mm x thickness 2 mm

Length	Voltage	Watts	Width	Connection	Material
3 mtr	230	135	6 mm	One Side	Nichrome Wire Duly teflon coated and SS braided
5.5 mtr	230	248	6 mm	One Side
10 mtr	230	450	6 mm	One Side
15 mtr	230	675	6 mm	One Side
25 mtr	230	1125	6 mm	One Side

Cable Type Silicon Drain Heater

Standard Watts 50 per meter ,Volts 230

Length	Voltage	Watts	Dia	Connection	Material
1 mtr	230	50	5 mm	One Side	Nichrome wire duly covered with silicon
2 mtr	230	100	5 mm	One Side
3 mtr	230	150	5 mm	One Side
4 mtr	230	200	5 mm	One Side
5 mtr	230	250	5 mm	One Side

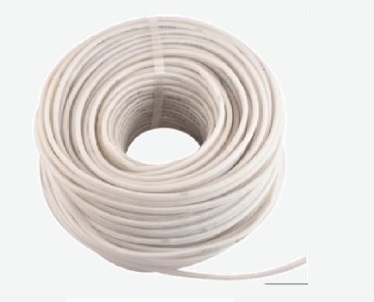

Silicon Heating Cable Rolls (Cut to Length)

Conductor sections 2x0.75 mm² 2x2.5mm² , Easy to cut to length Cold tail incorporated to avoid connection necessary

Length	Voltage	Watts per mtr	Dia	Connection	Material
100 mtr	230	40/50	6 mm	One Side	Silicon

Drain Heater

Drain Heater

SS Drain Heater

Standard Watts 45 per meter / Volts 230 / Width 6 mm x thickness 2 mm

Cable Type Silicon Drain Heater

Standard Watts 50 per meter ,Volts 230

Silicon Heating Cable Rolls (Cut to Length)

Conductor sections 2x0.75 mm2 2x2.5mm2 , Easy to cut to length Cold tail incorporated to avoid connection necessary
